In the Spool Manager dialog box, under the View Creation Settings tab, the Views To Create table lists the views that can be added to the spool sheet:

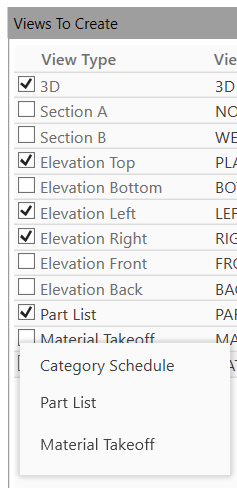

  • View Type - In addition to the graphical views (3D, Sections, and Elevations) the user can add 3 schedules to the spool sheet and can define the View Type for each schedule by selecting it from the drop-down.
    • Available view types are: Part List, Material Takeoff, and Category Schedule.

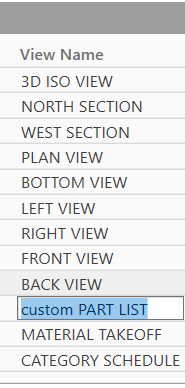

  • View Name - A custom view name can be set in the “View Name” field.

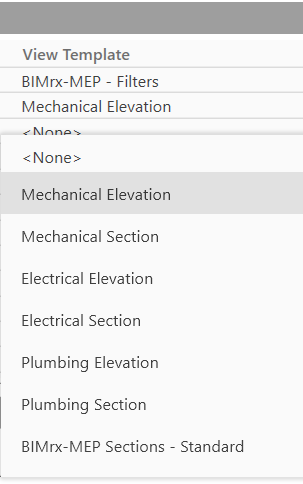

  • View Template - The View Template field provides a drop-down to select a view template (predefined by the user) for the specific view.


Notes:
  1. Only view templates compatible with the view type will be listed, so if the list is empty, the user will need to create a view template for the specific view type and restart the command.

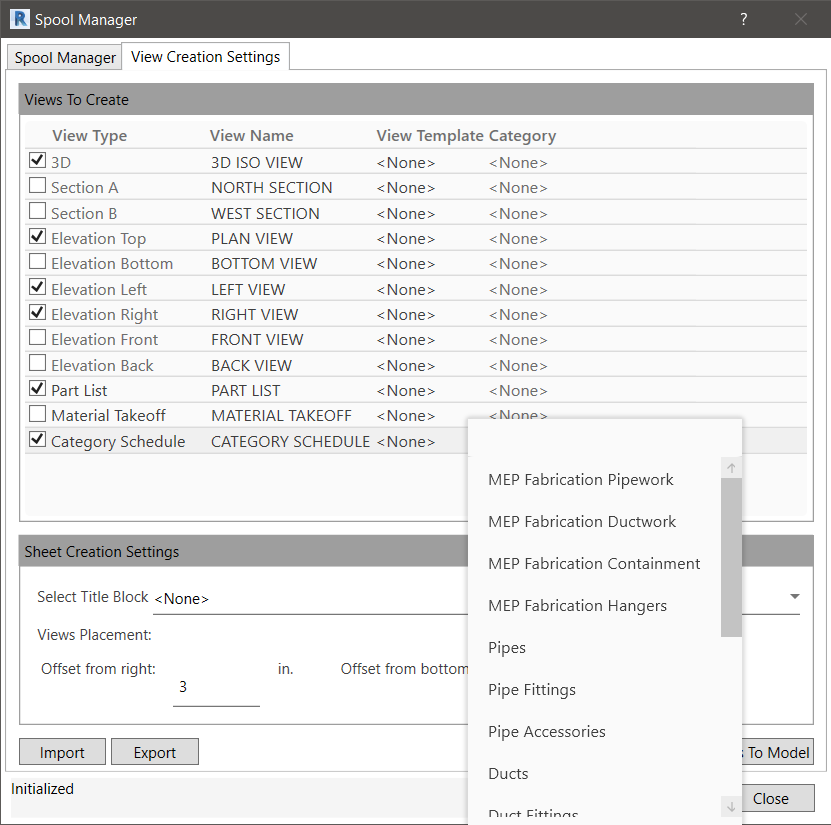

  • Category - If a “Category Schedule” is selected for the schedule type, the appropriate category must be defined in the “Category” field drop-down.


Notes:
  1. Only View Types of Catetory Schedule require a Category to be selected.
  2. The settings in Views To Create table will be used when Create Views is clicked in the Spool Manager tab.
