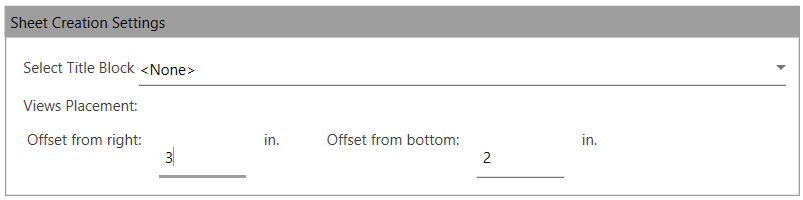

This section provides settings to define the sheet’s title-block and offsets from the bottom and the right borders of the sheet to restrict the view creation area so that it does not overlap with the informational section of the selected title block:


In View Creation Settings tab:

  • Click the drop-down next to Select Title Block and make an appropriate title block selection.
    • Only Title Block families defined in the active project will be listed here.
  • Modify the values for Offset from right and Offset from bottom under the Views Placement section.


Notes:
  1. The settings in the Sheet Creation Settings section will be used when Create Views is clicked in the Spool Manager tab.
